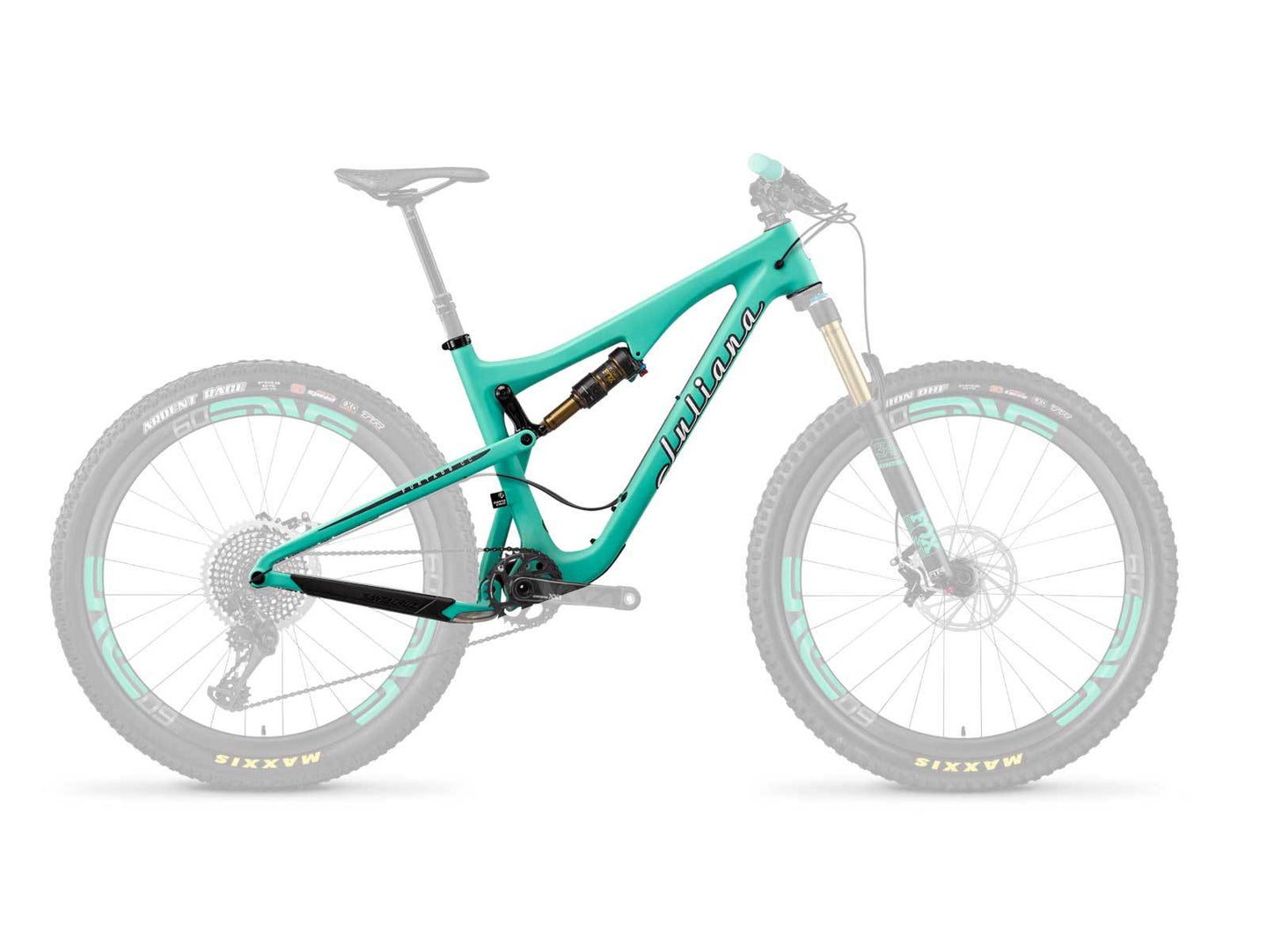

Juliana Furtado Carbon CC Frame - Spearmint

The Juliana Furtado offers a superb, comfortable confidence inspiring ride, combined with a lightweight carbon chassis making all day riding a joy. With geometry that matches the hugely popular Santa Cruz 5010 the Furtado combines fun and agility with the VPP suspension to improve pedalling efficiency for long days out and the perfect trail bike.

This V2 sported a completely new VPP® link arrangement.  The lower link tucks neatly above the bottom bracket, fully-recessed and protected from impacts.  Meanwhile the box-section upper link mounts cleanly to the top tube and enhances lateral stiffness as a result. The shock rate’s been refined in the process too, delivering greater small bump sensitivity and a more progressive mid-stroke.

Geometry is bang-on-trend to meet demand from all types of riders for a bike of this ilk. The seat tube angle is steep, placing the rider right above the cranks and perfectly in position to lay down the power. Meanwhile a slacker head tube angle combines with spot-on reach numbers and shorter chainstay length to create an evermore rally-ready geometry than its predecessor.

Features
148mm Rear Axle Spacing
Full carbon CC frame and swingarm
130mm VPP™ suspension
27.5" wheels
Double sealed pivots for long bearing life
Full carbon dropouts and disk mounts
Angular contact bearings maximize stiffness
Collet axle pivots lock in place without pinch bolts
Bottle cage mount within front triangle fits piggyback shocks
Molded rubber swingarm and downtube protection
Stealth and external seatpost cable routing
Threaded Bottom Bracket
ISCG-05 tabs for chainguide compatibility
Direct mount rear derailleur option

Geometry

	XS	S	M	L
Rider Height	4'8"+	5'0"+	5'5"+	5'10"+
Reach	390mm	405mm	425mm	445mm
Stack	576mm	586mm	595mm	604mm
Head Tube Angle	67°	67°	67°	67°
Seat Tube Length	375mm	395mm	420mm	460mm
Front Center	672mm	691mm	715mm	739mm
BB Height	334mm	334mm	334mm	334mm
BB Drop	20mm	20mm	20mm	20mm
Wheelbase	1098mm	1117mm	1141mm	1165mm
Chainstay Length	426mm	426mm	426mm	426mm
Head Tube Length	90mm	100mm	110mm	120mm
Top Tube Length	558mm	576mm	598mm	621mm
Seat Tube Angle	73.8°	73.8°	73.8°	73.8°
Standover Height	687mm	711mm	717mm	719mm
Eye to Eye Length	200mm	200mm	200mm	200mm
